Two Notes Torpedo C.A.B.M

the best speakersim stombox gets better

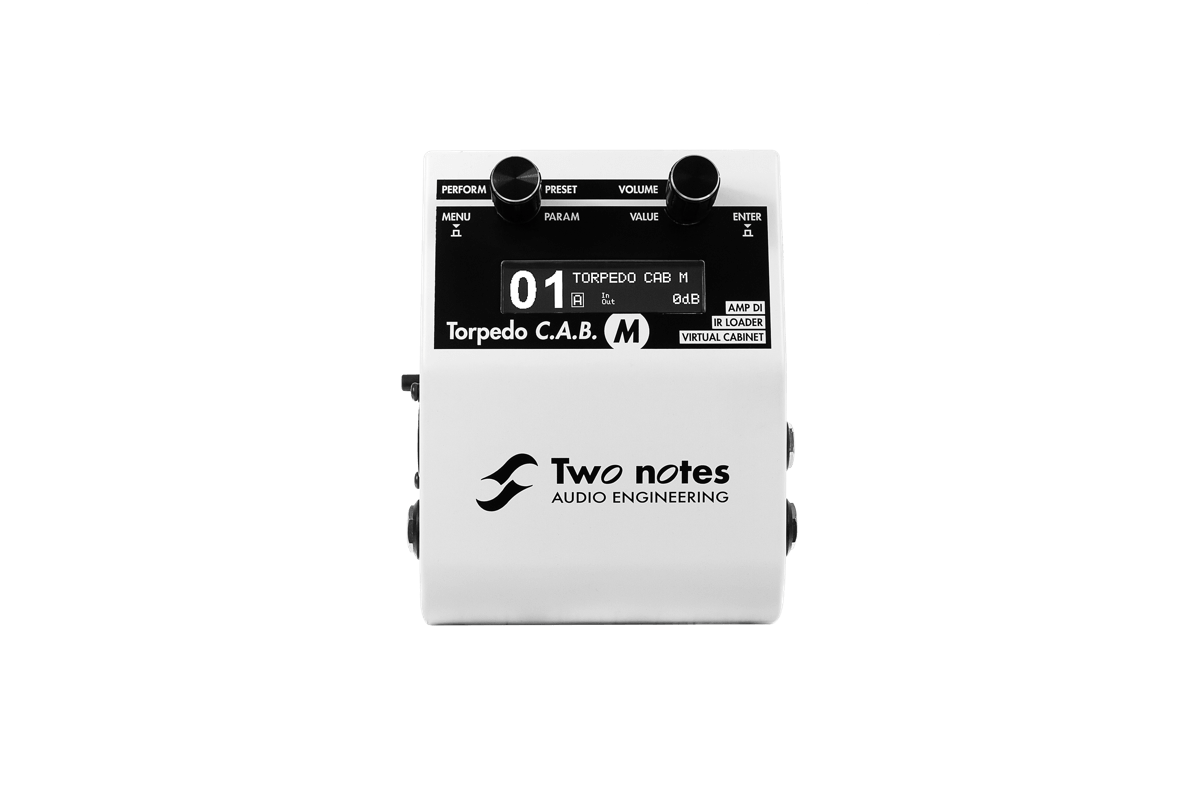

Two Notes Torpedo C.A.B.M

The Torpedo C.A.B. M («Cabinets in A Box») is the missing link between the guitarist’s rig and the PA or an audio interface. Use the best virtual cabinets available or load your own IR files.

THE CONCEPT

You love the sound of your guitar rig, with its carefully chosen pedals interacting with your amp. With the Torpedo technology, the tone you created is faithfully sent directly to a PA or an audio interface with consistency at any show, studio session or rehearsal. End the hassle of cables, mics and poor room quality that prevent your tone to be at its best.

The C.A.B M answers all the needs of the player because it can be placed at the end of the pedalboard to have a lightweight rig to carry around, between the amp and the speaker for the best amp DI, and with its headphones output it can be used at home with any pedals for quick and easy practice.

Exclusive Torpedo technology

Highly realistic speaker simulation is achieved by use of convolution. Two notes started from that technology and brought it much further, to accurately reproduce the characteristics of the whole miking chain (speaker, microphone, preamplifier, studio room acoustic).


Many parameters influence the sound of your guitar or bass rig when it comes to recording. Hence, taking good care of the cabinet selection and miking will dramatically improve the sound of your takes. The Torpedo simulation reproduces the tiniest variations of a cabinet behavior (such as its frequency response). Move the microphone in the virtual studio room thanks to the Torpedo IR synthesis: all the settings you need to achieve great recordings are here.


Because we want you to express your full potential, the Torpedo processing is compatible with third-party IRs, and the Torpedo C.A.B. M can load mono files in high resolution, up to 200ms in real time.

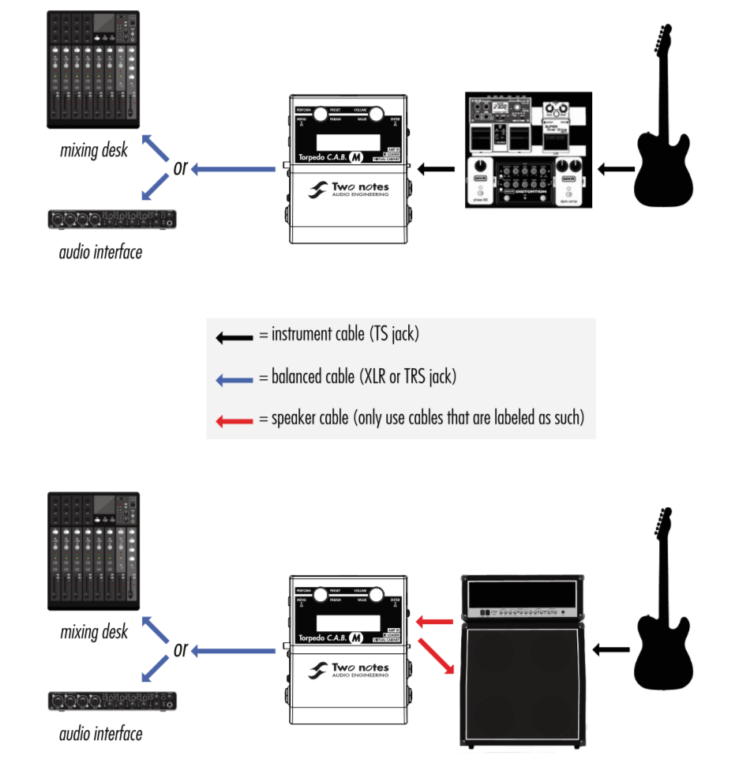

Connections

The Torpedo C.A.B. M finds its place on your pedalboard, after a preamp, among your usual stompboxes., or between between the amp and the speaker cabinet as an amp DI. To create a lightweight rig with a pedalboard, place the Torpedo C.A.B. M on your pedalboard knowing that the best results are achieved by placing it before the time-based and modulation effects (chorus, delay, reverb…), which then become brighter and clearer. Because of this position, you can take advantage of the possible stereo of these effects. This is similar to the way things are done in the studio, where modulations are often applied to guitar and bass tracks after recording.

To use the Torpedo C.A.B. M as an amp DI, place it after the power amp section of your amp by connecting the speaker output of the your amp to the AMP input of the C.A.B. M , and connecting your cabinet to the SPEAKER OUTPUT of the pedal. (DISCLAIMER: The Torpedo C.A.B. M is not a loadbox). Because the C.A.B. M is used this way, you are sure to send your exact full guitar tone to the PA or an audio interface to have the same quality studio-grade sound every single time you play. Also, you can also pair it with a loadbox to create a silent amp rig.

Torpedo C.A.B.M
Torpedo C.A.B.M

Connectivity

1- Parameter/Preset Encoder
2- Value/Volume Encoder
3- OLED display screen
4- Amp/Instrument/Line input
5- Speaker Output (!!when an amp is connected to the AMP input, the related cabinet has to be connected to the SPEAKER output of the pedal!!)
6- Input level sensitivity
7- USB for Remote application
8- Mains power adapter connector
9- Headphones output
10- Auxiliary input
11- Ground lift switch
12- Balanced XLR D.I output
13- Balanced TRS jack output

Torpedo C.A.B.M user manual
