UNIKA PRO-148

UNIKA NBB-04R

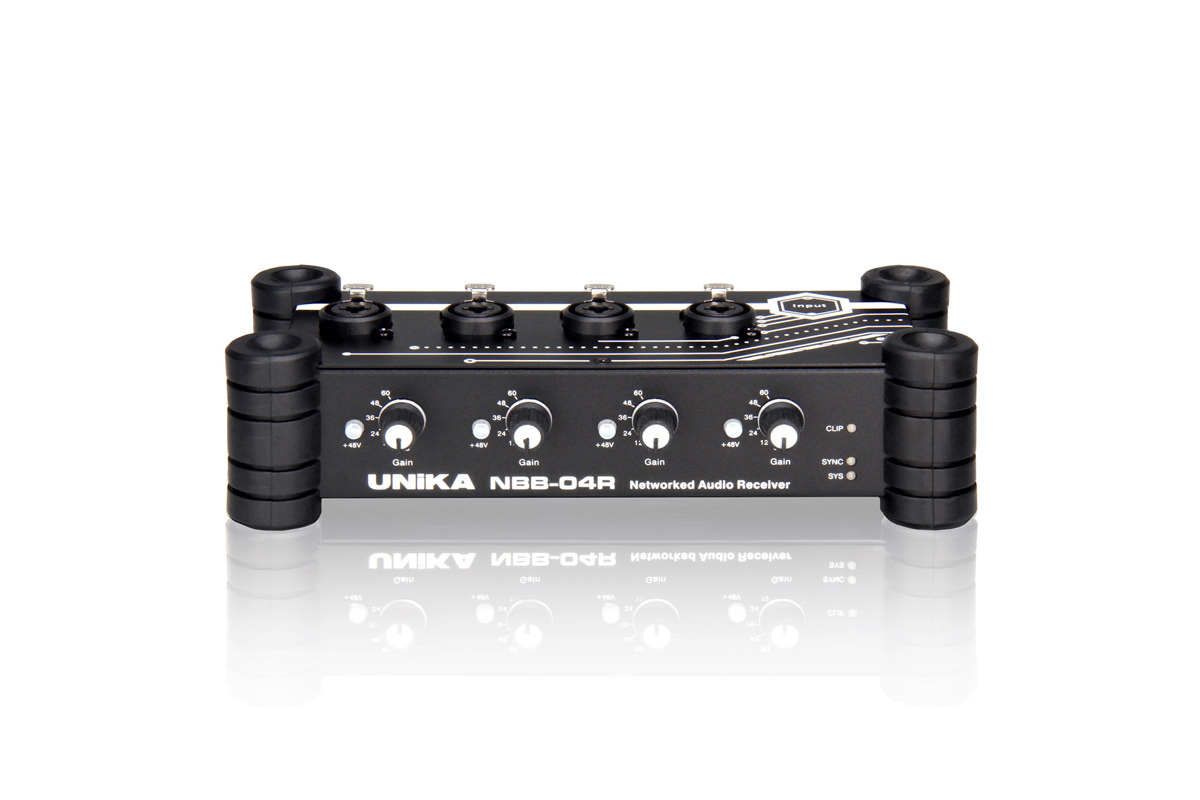

The NBB-04R and NBB-04T are extremely flexible audio interfaces that use Audinate Dante network technology for audio transmission. Each NBB-04R / NBB-04T has two Ethernet ports that allow you to cascade multiple NBB-04s.

The NBB-04R receives 4 analogue audio channels and converts them into a Dante network audio stream, which in turn can be received by other Dante-enabled devices such as digital audio consoles or DAWs.

  • Dante-enabled networked Audio Receiver (NBB-04R) and Transmitter (NBB-04T)
  • Streaming audio in robust standard Ethernet cable
  • Easily organize and expand network topology with Ethernet switches
  • Uncompressed 24-bit PCM coding with sample rate up to 96KHz
  • Two RJ-45 ports make Daisy-chain cascading feasible
  • Powered by either PoE or 48V adapter
  • Gain or Attenuate control for each channel
  • Phantom power engagement control per channel (NBB-04R)
  • A signal clip indicator for all inputs (NBB-04R)
  • XLR Combo sockets for both XLR and phone plugging (NBB-04R)
  • Routing and other configuration are set with Dante Controller software
Audio routing between the UNiKA boxes and all other Dante-enabled devices is configured via a computer with dedicated Dante Controller software, available free of charge from the Audinate website. With the Dante Virtual Soundcard software, you can use the NBB-04R / NBB-04T together with your DAW software for direct recording / playback of multitrack audio. The units are powered via an external power supply (48V) or via an Ethernet switch (PoE).

The audio input / output interfaces of the NBB-04R / NBB-04T meet the requirements of the professional audio industry. The audio signal is encoded / decoded uncompressed via 24-bit PCM converters with a sampling rate of 44.1 kHz, 48 kHz or 96 kHz. The electronically balanced NBB-04T outputs, which can also be adjusted on the unit, provide a signal voltage of up to 24 dBu.

The inputs of the NBB-04R can be driven with line or microphone level and can also be levelled at the unit. They also have phantom power and a clip indicator.

UNIKA NBB-04R

DANTE INPUT INTERFACE

UNIKA NBB-04R

DANTE INPUT INTERFACE
