AVID
MBOX Studio

Create professional recordings in your own studio. The MBOX Studio USB audio interface is compatible with Pro Tools Studio and has everything you need to make music. From finding inspiration and composition ideas to recording, playing and mixing your next big hit, the intuitive design lets you unleash your creativity and waste no time.

MBOX Studio is equipped with the highest quality components, preamps and audio converters in its class, so you can record and mix audio from input to output at up to 24 bits and 192 kHz. The variable Z knob opens up a whole range of sonic possibilities for you. And with built-in real-time EQ, delay, and reverb, as well as independent cue mixing, you can realize your performance with low latency.

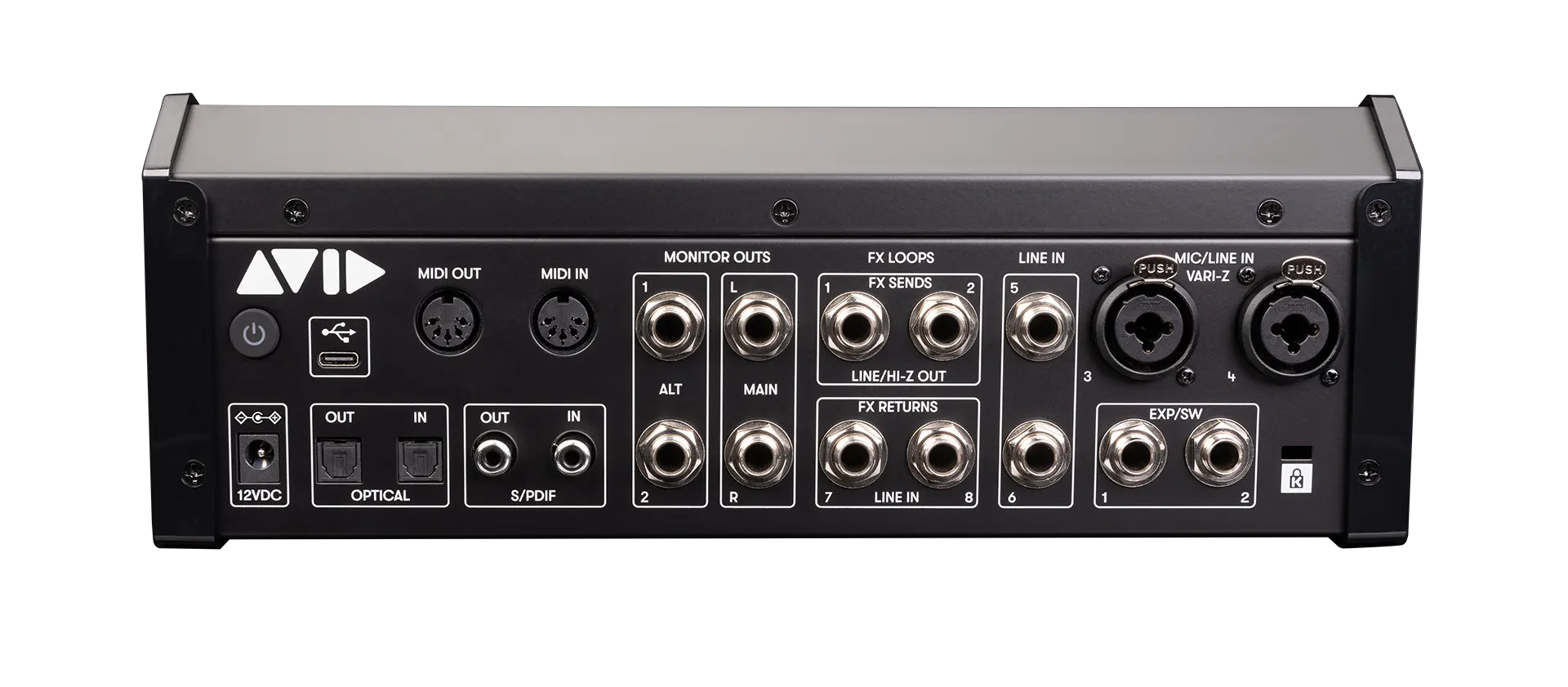

• 21 x 22 simultaneous I/Os at 24-bit/96 kHz conversion (10 x 10 at 176.4/192 kHz)
• 4 high-quality mic preamp/line inputs with variable Z (impedance)
• 2 instrument inputs with variable Z
• 4 additional line-level inputs
• 2 impedance-switchable effects loops
• 2-way simultaneous stereo Bluetooth I/O
• Optical I/O 8-channel ADAT or 2-channel S/PDIF
• Coaxial S/PDIF I/O
• MIDI I/O
• 2 stereo monitor outputs
• 1 impedance-matched Hi-Z amplifier output (with ground lift) to guitar amplifier
• 2 headphone outputs with independent cue mix control and built-in talkback microphone
• 2 footswitch/expression pedal inputs
