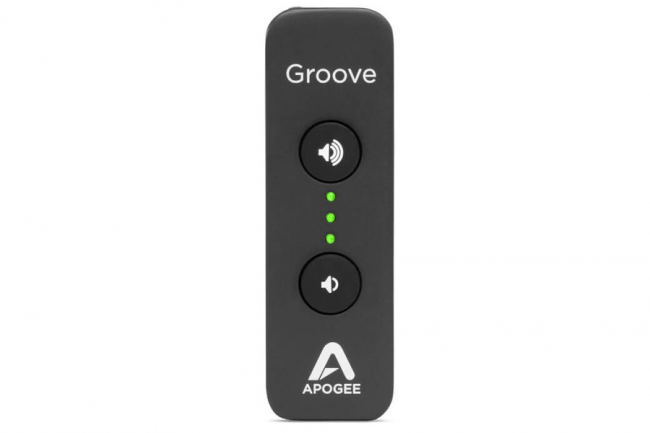

Apogee GROOVE
Portable USB DAC & headphone amplifier
for mac, iOS and PC.
Enjoy your music
Constant current drive - to make every headphone sound its best.
Constant current drive - to make every headphone sound its best.
.
Groove's unique circuit design
Quad Sum DAC™
Groove also features a quad-sum DAC design that achieves the highest dynamic range and lowest distortion (THD+N) of any device in its class with four digital-to-analog converters per channel.
Constant Current Drive™
Groove's Constant Current Drive output stage dynamically compensates for the non-linearities - acoustic, mechanical, or electrical - of a connected headphone, resulting in lower distortion and a more linear frequency response. Whether you listen with earbuds or hi-fi headphones, you'll discover a new level of fidelity, clarity, and detail.
ESS Sabre DAC-Technologie
The ESS Sabre32 32-bit hyperstream DAC with Time Domain Jitter Eliminator provides unmatched dynamic range, ultra-low distortion, and audio clarity without input jitter.
Quad Sum DAC™
Groove also features a quad-sum DAC design that achieves the highest dynamic range and lowest distortion (THD+N) of any device in its class with four digital-to-analog converters per channel.
Constant Current Drive™
Groove's Constant Current Drive output stage dynamically compensates for the non-linearities - acoustic, mechanical, or electrical - of a connected headphone, resulting in lower distortion and a more linear frequency response. Whether you listen with earbuds or hi-fi headphones, you'll discover a new level of fidelity, clarity, and detail.
ESS Sabre DAC-Technologie
The ESS Sabre32 32-bit hyperstream DAC with Time Domain Jitter Eliminator provides unmatched dynamic range, ultra-low distortion, and audio clarity without input jitter.
Highlights
- USB 2.0 port for Mac and PC
- Up to 24 bit / 192kHz audio
- ESS Sabre DAC
- Improves listening quality from iTunes, Pandora, Spotify and more software
- Constant current drive provides fine frequency response with any headphone
- Quad Sum DACT, 4 DACs per channel for highest dynamic range and quietest distortion
- asynchronous clocking
- Multi-color LEDs for status and level indication
- Power supply via USB
- Top panel buttons for volume adjustment
- Compact and portable (95mm L x 30mm W x 16mm H)
- Premium aluminum processing quality
- Built in the USA
Apogee Groove 40th Anniversary Edition
This special edition of Apogee Groove pays homage to Apogee's history while offering state-of-the-art enhancements for an even more exceptional listening experience. With 32-bit resolution, improved dynamic range and frequency response, and access to Hi-Rez Lossless Audio via preferred platforms, Groove Anniversary Edition sets new standards.
Experience music in new dimension
With the special edition of the Apogee Groove, Apogee celebrates 40 years of technology innovation while offering you state-of-the-art enhancements for an unparalleled listening experience.
Superior sound quality
32-bit resolution, enhanced dynamic range and frequency response deliver crystal-clear sound that brings even the subtlest nuances of your favorite music to life.
Immerse yourself in the world of high-res audio
With Hi-Rez Lossless Audio, you can experience your music collection in a quality you've never heard before. Immerse yourself and be enchanted by every single sound.
|
|
ORIGINAL |
ANNIVERSARY |
|---|---|---|
|
DAC |
24bit |
32bit |
|
REL THD+N |
-107dB |
-109dB |
|
30 Ohm @10.5dBu |
-100dB |
-101dB |
|
Dynamic Range |
117dB |
119dB |
|
FREQUENCY RESP 10Hz-20kHz @44.1kHz |
+/-0.2dB |
+/- 0.1dB |
|
MAX OUT LEVEL |
+19dBu |
+19dBu |
|
POWER into 30 Ohm |
560mW |
560mW |
|
into 600 Ohm |
90mW |
90mW |
|
OUTPUT IMP |
Constant Current Drive |
Constant Current Drive |
Highlights
Experience music in new dimension
With the special edition of the Apogee Groove, Apogee celebrates 40 years of technology innovation while offering you state-of-the-art enhancements for an unparalleled listening experience.
Superior sound quality
32-bit resolution, enhanced dynamic range and frequency response deliver crystal-clear sound that brings even the subtlest nuances of your favorite music to life.
Immerse yourself in the world of high-res audio
With Hi-Rez Lossless Audio, you can experience your music collection in a quality you've never heard before. Immerse yourself and be enchanted by every single sound.
Highlights
Anniversary Edition Groove
|
|
ORIGINAL |
ANNIVERSARY |
|---|---|---|
|
DAC |
24bit |
32bit |
|
REL THD+N |
-107dB |
-109dB |
|
30 Ohm @10.5dBu |
-100dB |
-101dB |
|
Dynamic Range |
117dB |
119dB |
|
FREQUENCY RESP 10Hz-20kHz @44.1kHz |
+/-0.2dB |
+/- 0.1dB |
|
MAX OUT LEVEL |
+19dBu |
+19dBu |
|
POWER into 30 Ohm |
560mW |
560mW |
|
into 600 Ohm |
90mW |
90mW |
|
OUTPUT IMP |
Constant Current Drive |
Constant Current Drive |
