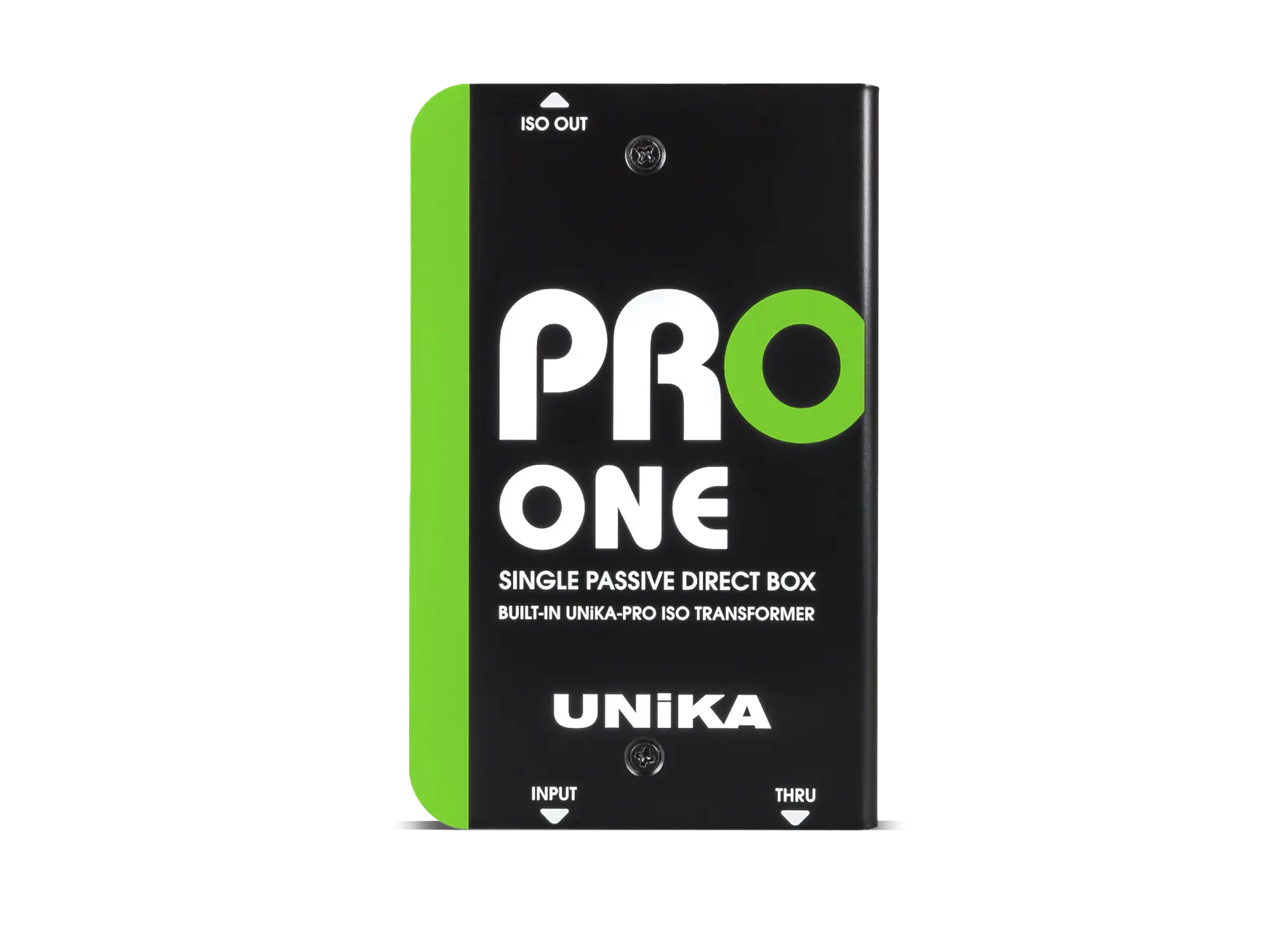

UNiKA PRO-ONE

UNIKA PRO-ONE

UNiKA PRO-ONE is a professional passive DI box designed to connect electronic equipment with line-level outputs such as keyboards, drum machines, Drum Pads and DJ Equipment to balanced low impedance inputs such as those from mixers, external microphone preamps, active speakers and sound cards. Since PRO-ONE is a passive device, no batteries or other power supplies are required. Note: For instruments and devices without line-level output, please use UNiKA PRO-148 or PRO-248.

UNiKA PRO-ONE and UNiKA PRO-TWO can be used to safely connect and electronically isolate a variety of audio devices. For additional safety, PRO-ONE and PRO-TWO pass no phantom power (48V) and can also be used "in reverse" for unbalanced line outputs with a suitable inverse XLR adapter.

UNiKA PRO-ONE

FEATURES

  • CIRCUIT PRINCIPLE: Passive with transformer-balanced output
  • INPUT CONNECTION: 1 TRS jack
  • LINK: 1 TRS jack
  • INPUT AMPLIFICATION: 0 / -20 dB switch
  • OUTPUT CONNECTION: 1 XLRm jack, balanced, isolation transformer
  • OUTPUT IMPEDANCE: 50 ohms
  • OUTPUT GROUNDLIFT: via switch
  • MAXIMUM INPUT LEVEL BEFORE CONTROL: +22 dB
  • MAXIMUM OUTPUT LEVEL: +22 dB
  • FREQUENCY LEVEL: 20 Hz - 20 kHz, -0.05/+0.25 dB
  • S/N RATIO @20 HZ - 20 KHZ, UNAMPLIFIED: > 120 dB
  • THD @ 1 KHZ, 0 dB OUTPUT: < 0.02%
  • OUTPUT IMPEDANCE: 50 ohms
  • TRANSFORMER TYPE: 1+1:1+1
  • HOUSING: 1.6 mm / 1.2 mm steel
  • FINISH: Scratch-resistant paint
  • DIMENSIONS (W X D X H): 78 x 124 x 46 mm
  • WEIGHT: 0.55 kg

FEATURES

  • CIRCUIT PRINCIPLE: Passive with transformer-balanced output
  • INPUT CONNECTION: 1 TRS jack
  • LINK: 1 TRS jack
  • INPUT AMPLIFICATION: 0 / -20 dB switch
  • OUTPUT CONNECTION: 2 XLRm female, balanced, isolation transformer
  • OUTPUT IMPEDANCE: 50 ohms
  • OUTPUT GROUNDLIFT: via switch
  • MAXIMUM INPUT LEVEL BEFORE CONTROL: +22 dB
  • MAXIMUM OUTPUT LEVEL: +22 dB
  • FREQUENCY LEVEL: 20 Hz - 20 kHz, -0.05/+0.25 dB
  • S/N RATIO @20 HZ - 20 KHZ, UNAMPLIFIED: > 120 dB
  • THD @ 1 KHZ, 0 dB OUTPUT: < 0.02%
  • OUTPUT IMPEDANCE: 50 ohms
  • TRANSFORMER TYPE: 1+1:1+1
  • HOUSING: 1.6 mm / 1.2 mm steel
  • FINISH: Scratch-resistant paint
  • DIMENSIONS (W X D X H): 78 x 124 x 46 mm
  • WEIGHT: 0.55 kg
UNiKA PRO-ONE

UNiKA PRO-ONE is equipped with a UNiKA-PRO™ EI30A10E 1+1: 1+1 isolation transformers equipped, which has a special copper foil layer and a dedicated grounding layer, enabling this device to restore high signal-to-noise ratio and dynamic sound and prevent unnecessary losses due to high-frequency interference, grounding interference and potential differences can be avoided.

.
