RME
QUADMIC II

4-CHANNEL PORTABLE MIC PREAMP

Excellent signal/noise ratio, lowest harmonic distortions and wide gain range make the QuadMic II a first choice for superior studio recordingsQuadMic II is battery powerable and thus excellent for remote applications.

Connectivity and Features

  • 4 x Mic/Line Input
  • XLR/TRS Combo Input
  • 4 x Line Output
  • Phantom power per channel
  • Low Cut per channel
  • Phase reversal per channel
  • DC powered, battery compatible
  • Low power / wide range DC operation

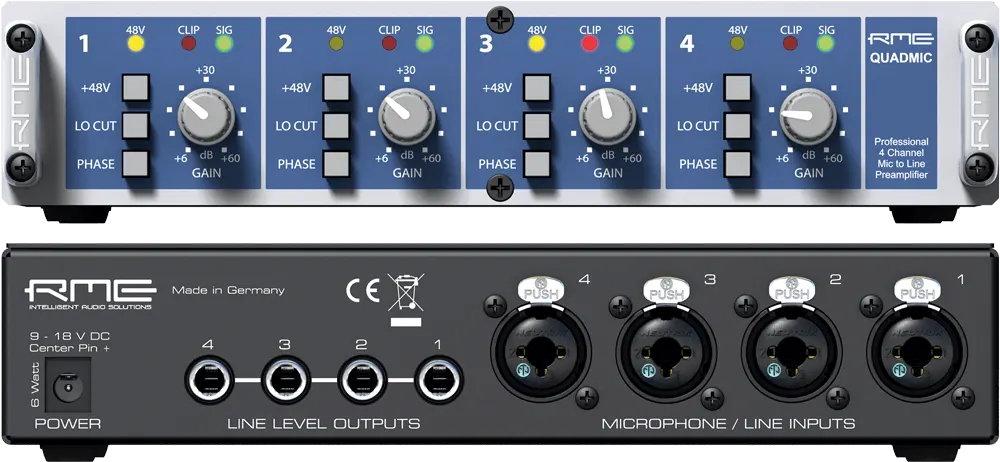

RME QuadMic II

Features

Each of the 4 channels features balanced microphone and line inputs with Neutrik XLR/TRS combo jacks, switchable 48V phantom power, phase reversal and a low cut filter. All channels are also equipped with LEDs for signal presence, clip state, and activated phantom power. The input amplification can be set from 6 to 60 dB. The balanced line level output signals are provided on the rear of the unit as four 6.3 mm (1/4") TRS jacks.

A maximum balanced and unbalanced output level of +21 dBu makes the QuadMic II fully compatible to RME's converters and interface series having analog inputs.

The QuadMic II complements any RME system with line inputs by adding external microphone inputs. Since the unit runs on supply voltages from 9 to 18V DC, it can operate on virtually any power source available, including batteries and rechargeable batteries.

TECH-SPECS

  • Power supply: Operates with voltages ranging from 9-18V DC
  • Operation with practically any DC power source, including (rechargeable) batteries
  • High-quality switching power supply included, for worldwide operation at 100-240 Volt
  • Max. input level XLR: +15 dBu
  • Max. input level TRS: +21 dBu
  • Max. output level: +21 dBu
  • SNR: 129 dB EIN @ 150 Ohm
  • THD: < 0,006% @ 30 dB Gain
  • Wide frequency response with special RF input filter
  • Frequency response: 5 Hz - 200 kHz, - 0.5 dB
  • Hi-pass filter at 80 Hz, 18 dB/oct
