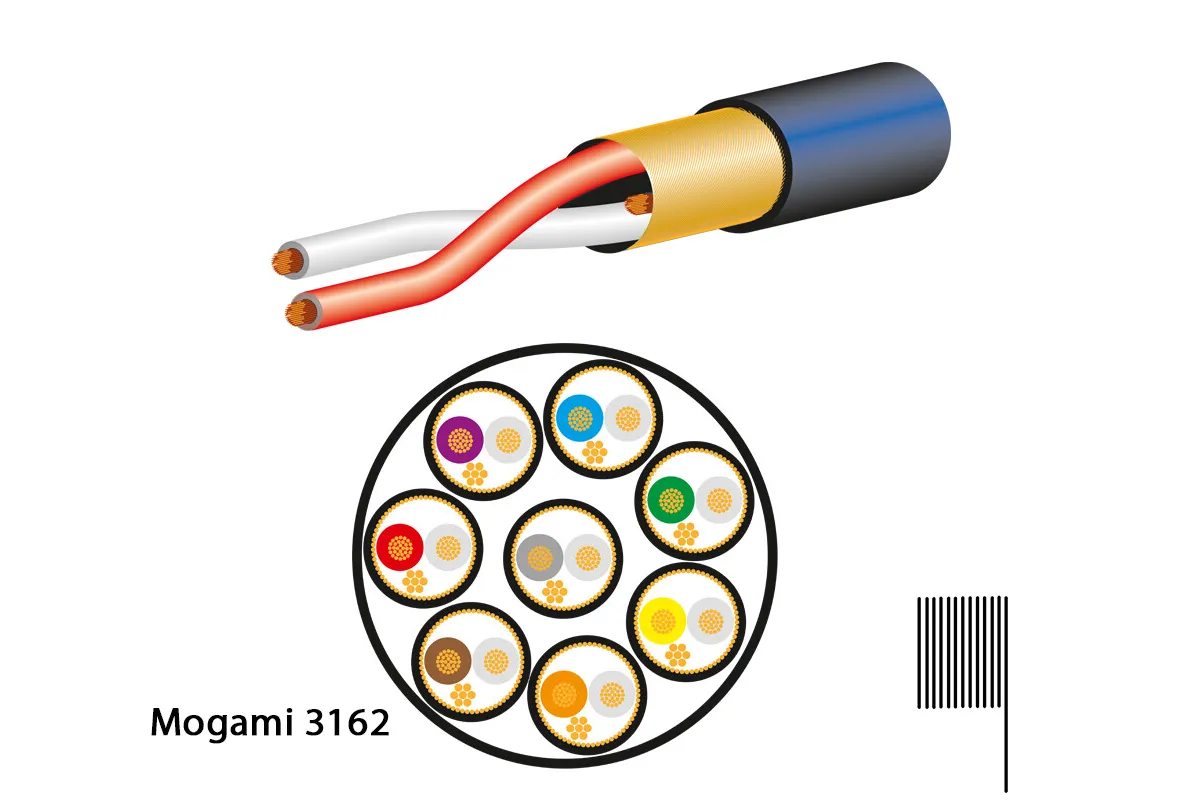

MOGAMI3162 Multicore Cable Digital, 8-Channel
AES/EBU, 110 Ohm
- Very flexible and compact design
- Easy identification through numbered cables and resistor colour code
- Flexible and good behaviour at low temperatures

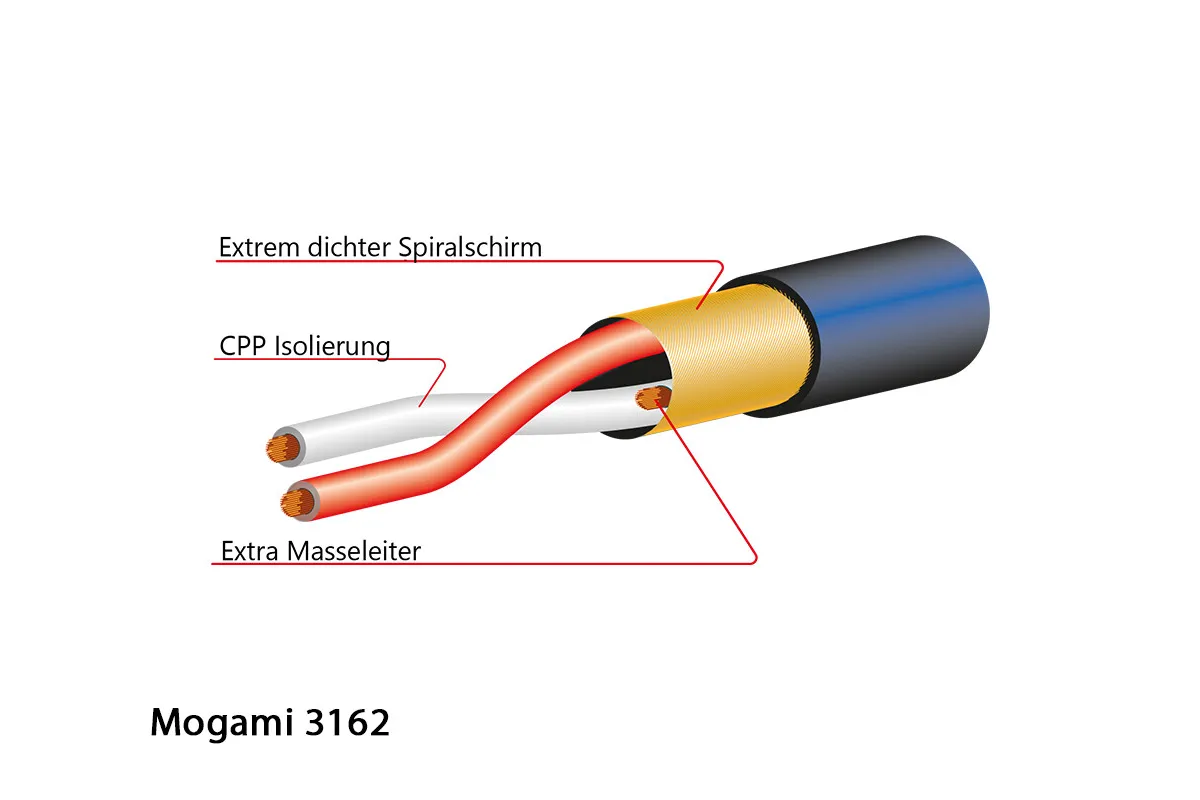

- CPP insulation material for reduced attenuation
- Easy wiring, installation and handling
- Identical conductor cross-section for the shunt wires
- Ø 13,8 mm
The 3162 Multicore from MOGAMI is optimised for the transmission of digital audio signals according to the AES/EBU standard. The required impedance of 110 Ohm is guaranteed with a tolerance of only ±10%.
A low capacitive resistance and selected materials guarantee not only the excellent transmission properties but also the uncomplicated handling of the cable. Due to the use of CPP insulation material, a larger conductor cross-section can be used regardless of its compact overall diameter, which naturally results in lower attenuation. All 8 leads are numbered for easy identification.
Mogami's special cable design produces incredibly low noise and low-loss performance. A cable of this quality adds extreme value to an important part of your signal chain.
