FERROFISH PULSE16 AE
16 x 16 AD/DA <> ADAT Converter
The center of your audio universe.

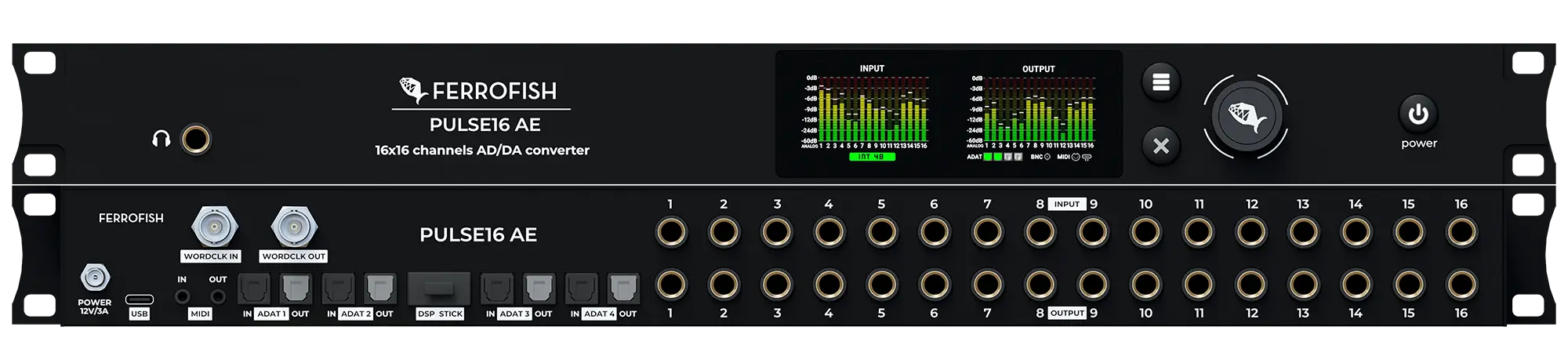

The Ferrofish PULSE16 AE is a versatile, compact AD/DA converter that seamlessly integrates into studio and live setups. It has 16 high-quality balanced analog inputs and outputs to ensure precise, clean signal conversion. Its clear front-panel displays offer complete visual control, simplifying real-time monitoring and configuration. Designed for professional workflows, the PULSE16 AE's robust clocking options and compatibility with standard studio connections make it an indispensable tool for sound engineers seeking reliable performance in a 19-inch, 1U rack form factor.
Intuitive visual monitoring
The front panel's high-resolution display provides instant visual feedback on all input and output signals. It also offers professional-level meters and displays system status at a glance. The multicolored level meters ensure accurate level monitoring in any environment.
First-class converter architecture
Thanks to carefully selected DACs and a temperature-compensated clock design, experience flawless audio quality. The PULSE16 AE from Ferrofish delivers crystal-clear conversion at up to 192 kHz and professional headroom of +20 dBu, upholding the company's reputation for exceptional sound quality.
Professional remote control
Take control of your audio routing and settings with RemoteFish, the comprehensive software for Mac and PC. The USB-C connection provides instant access to all parameters. MIDI I/O enables integration with larger systems and facilitates firmware updates for continuous improvement.
Flexible integration hub
The PULSE16 AE easily converts and serves as a versatile routing solution thanks to its comprehensive ADAT connectivity and word clock synchronization options. Seamlessly connecting analog and digital domains, it is the ideal centerpiece for studio and live applications.
Advanced headphone monitoring
The dedicated headphone output is powered by a separate ESS DAC and offers exceptional monitoring capabilities with precise volume control in 1 dB increments. Four-stage amplification ensures compatibility with any headphone impedance, making it ideal for critical listening and tracking sessions.
Future-proof expandability
Thanks to its modular design, the PULSE16 AE is equipped for tomorrow's challenges with its DSP expandability. The optional slot for DSP sticks enables future upgrades in computing power and protects your investment while offering a path to expanded functionality.
New Features and Changes Compared to Pulse16
Pluse16 | Pulse16 AE | |
|---|---|---|
Converter technology | Cirrus Logic AD/DA | ESS ES9017 (DAC) + ESS ES9840Q (ADC) for a wider dynamic range and lower THD+N |
DSP Expansion | None | Optional DSP stick for advanced audio processing |
MADI Option | MADI available via MX/DX models as an upgrade path | No MADI upgrade option; MX and DX remain available with MADI functions. |
Routing | 8-channel group-based | Single-channel routing |
Remote control & I/O | No USB-C remote control (MIDI DIN only), no MIDI controller commands | USB-C for RemoteFish, supports MIDI controller commands |
Menu & User Interface | Classic user interface | Modern user interface, aligned with A32pro / Pulse8 AE |
Pulse16 AE Specifications
Analog inputs and outputs
- 16 balanced TRS inputs (6.3 mm)
- 16 balanced TRS outputs (6.3 mm)
- Headphone output (6.3 mm)
ADAT connectivity
- 4 ADAT inputs
- 4 ADAT outputs
- Supports SMUX for higher sample rates: 32 channels at 48 kHz, 16 channels at 96 kHz, 8 channels at 192 kHz
Clocking
- Word clock input and output (BNC connectors)
- Internal high-stability clock generator or external synchronization via ADAT or word clock
Routing
- Routing per channel
Monitoring
- High-resolution displays on the front panel for monitoring input and output levels
- Multi-color LED indicators for clear visual feedback
Controls and user interface
- The front of the device features a control knob and buttons that allow for quick navigation and setup.
Connectivity
- USB-C for remote configuration via Ferrofish RemoteFish software
- Remote control via MIDI controller commands (MIDI CC)
- MIDI port for firmware updates and future features
Headphone output
- 6.3 mm jack output
- Amplification power adjustable in four stages
- Digital volume control with 1 dB resolution
- Special monitoring function via a separate ESS
DSP Processing
Expandable via optional DSP stick
Pulse16 AE – Technical data
Digital-to-analog conversion
- DAC: ESS ES9017
- 32-bit / 192 kHz
- DNR: 120 dB
- THD+N: –110 dB
Output impedance: 110 Ω
- Analog-to-digital conversion
- ADC: ESS ES9840Q
- 32-bit / 192 kHz
- DNR: 116 dB
- THD+N: –108 dB
- Input impedance: 6 kΩ
Headphone output
- 6.3 mm jack output
- Four-stage adjustable gain
- Digital volume control with 1 dB resolution
- Supported impedance range: 15–600 Ω
Dedicated monitoring path via separate ES9023 DAC
Internal word clock
- 125 MHz high-precision oscillator
- Initial accuracy: ±1.5 ppm
- Temperature drift: ±2.5 ppm
- Aging: ±1 ppm125 MHz
Power supply
- Voltage: 12 V DC / 3 A
- Power consumption: 12 VA (nominal), <1 VA (standby)
- Connection: 2.54 mm barrel connector with locking screw
- Connection with positive center point
- Included in the box
Form factor
- Rack-mountable 19"/1U
- Dimensions: 50 × 4.4 × 19 cm
- Weight 2 kg
