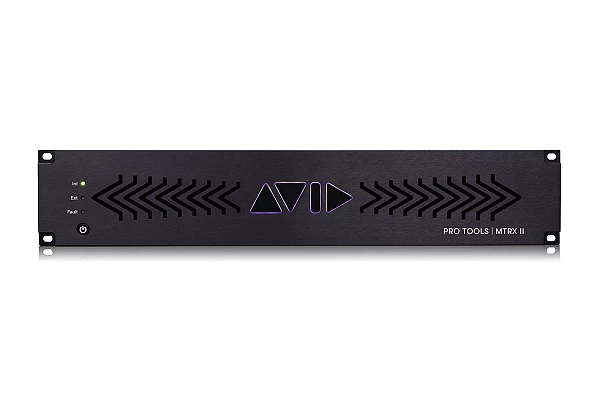

Pro Tools | MTRX II
ANALOG I/O Card
8 Line Pristine AD Card (input)
Add eight channels of line-level analog inputs for connecting preamps, keyboards, signal processors, mixers, and other gear to Pro Tools | MTRX, MTRX II.
The Pro Tools | MTRX 8 Line Pristine AD Card gives you eight channels of pristine line-level inputs via a 25-pin D-sub connector (Tascam standard) with adjustable gain from -18 dB to +70 dB. The maximum input level of the MTRX 8 Line Pristine AD Card is 9 dBu to 30 dBu, with a sampling resolution of 5 bit sigma/delta at 5.645 MHz or 6.144 MHz, 24 bit PCM; DSD 64 and 128FS. The card features an extremely low noise behavior of 0.00014% and crosstalk of less than -120dB. The input impedance for the inputs of the MTRX 8 Line Pristine AD Card is 10 kOhm.
- Add eight channels of line-level analogue inputs via a 25-pin D-sub connector with Tascam's standard pin configuration
- Input gain adjustable from -18dB to +70dB
- Sampling resolution: 5-bit sigma/delta @ 5.645MHz/6.144 MHz; 24-bit PCM, DSD 64 and 128FS
The MTRX interface has eight available slots for I/O customization, with up to six slots for mixing and matching analogue (AD/DA) cards, allowing up to 48 analogue channels per MTRX interface.
ANALOG INPUTS 8 LINE-LEVEL
Input gain: Adjustable from -18 to +70 dB, in steps of 0.1 dB, ± 0.25 dB accuracy
Max input level: Adjustable from 9 dBu to 30 dBu in steps of 0.1 dB
Sampling, resolution: 5-bit sigma/delta @ 5.645 or 6.144 MHz, 24-bit PCM
DSD sample rates: 2.8224 and 5.6448 Mhz (64 and 128 fs)
THD+N (A): < -117 dB @ -3 dB FS / 0.00014%
Crosstalk: < -120 dB
Input Impedance: > 10 k Ohm
