APOGEESYMPHONY MKII

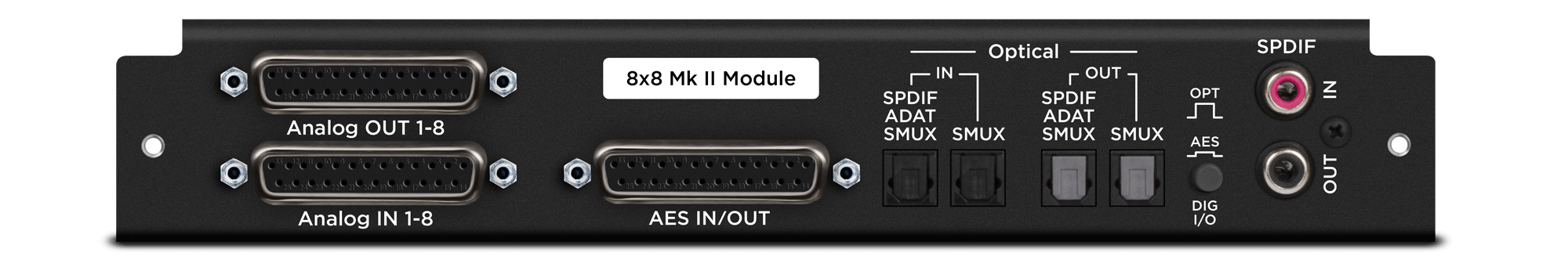

8x8 Module
8X8 analog I/O + 8X8 AES/optical I/O
16 channels of I/O simultaneously
Inputs
Analog IN: 8 balanced inputs on 1 DSUB 25-pin connector
*AES-EBU IN: 8 inputs on 1 DSUB 25-pin connector(192k single wide compatible)
*Optical IN: Supports ADAT, SMUX & S/PDIF
ADAT: 8 channels 44.1-48 kHz
SMUX: 8 channels 88.2-96 kHz
S/PDIF: 2 channels, up to 96 kHz
Coax IN: 2 channels of S/PDIF, up to 192 kHz
*Dig I/O hardware switch selects AES or Optical digital I/O format
Outputs
Analog OUT: 8 balanced outputs on 1 DSUB 25-pin connector
*AES-EBU OUT: 8 outputs on 1 DSUB 25-pin connector(192k single wide compatible)
*Optical OUT: Supports ADAT, SMUX & S/PDIF
ADAT: 8 channels 44.1-48 kHz
SMUX: 8 channels 88.2-96 kHz
S/PDIF: 2 channels, up to 96 kHz
Coax OUT: 2 channels of S/PDIF, up to 192 kHz
