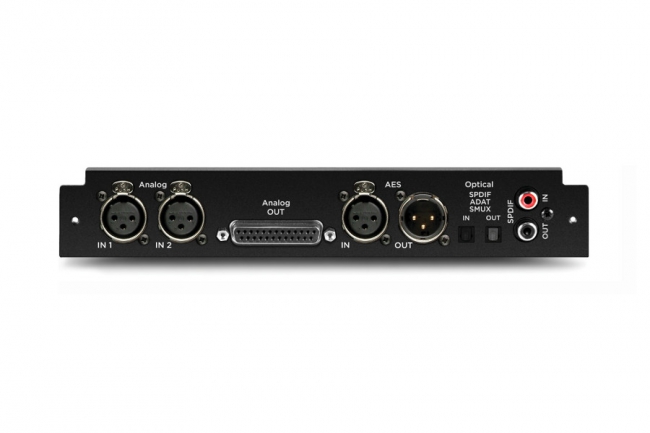

APOGEE SYMPHONY I/O MKII 2×6 MODUL

APOGEE SYMPHONY I/O MKII 2×6 MODUL

2X6 ANALOG I/O + 8X8 OPTICAL + AES I/O

Analog Inputs

  • 2 balanced inputs on 2 female XLR connectors
  • Connect microphones via external mic preamps
  • Connect guitars via DI boxes or external mic preamps
  • onnect keyboards directly to Symphony I/O

Digital Inputs

  • AES IN: Stereo input on 1 female XLR connector
  • Optical IN: Supports ADAT, SMUX & S/PDIF
  • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
  • SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
  • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
  • S/PDIF Coax IN: 2 channels, up to 96 kHz on 1 RCA connector

Analog Outputs

  • 6 balanced outputs on 1 DSUB 25-pin connector


Digital Outputs

  • AES OUT: Stereo output on 1 male XLR connector
  • Optical OUT: Supports ADAT, SMUX & S/PDIF
  • ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector
  • SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector
  • S/PDIF: 2 channels, up to 96 kHz on 1 Toslink connector
  • S/PDIF Coax OUT: 2 channels, up to 192 kHz on 1 RCA connector
